Engineering Repair

Engineering Repair

Our Highlands Performance Resins range of engineering repair products are available for most engineering maintenance issues from abrasion resistance, impact resistance and metal repair problems using the latest two pack solvent free technology and ceramic fillers. We also offer high temperature solutions for certain products.

HPR Ceramic Repair Compound 511-SFC

Properties

£112.49 - £325.99 Exc. VAT HPR Ceramic Repair Compound 511-SFC is an erosion/corrosion resistant coating used principally in fluid flow situations for improving flow efficiency. The material can be applied directly to abrasive blasted steel or to surfaces previously rebuilt with…

Applications

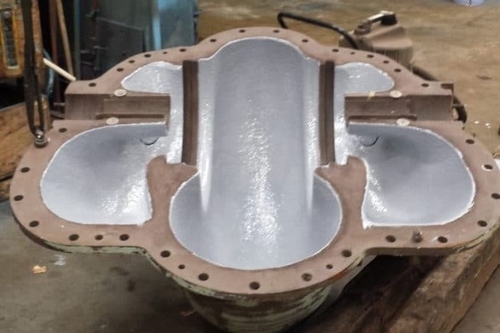

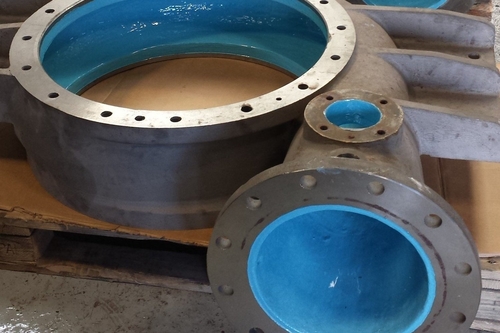

>Pump Casings >Pump Impellers >Valves >Pipes >Propellers >Rudders >Jet Tubes >Kort Nozzles

Colours & Unit Size

Colours: >Dark Grey >Light Grey >Red >Blue Unit Size: >1KG >3KG >30KG

Coverage & Cure Time

Coverage: >Approx. 2.8M² per KG at 250µ Cure Time: >Light Loading: Approx. 10 Hours at 20°C >Full Cure (chemical immersion): Approx. 6 Days at 20°C

Pot Life & VOC

Pot Life: > Approx. 30-40 Minutes at 20°C VOC: >0g/L

HPR Ceramic Repair Compound 512-C

Properties

HPR Ceramic Repair Compound 512-C is an erosion-corrosion resistant coating for use principally in fluid flow situations. The material can be applied directly to abrasive blasted steel or to surfaces previously rebuilt with HPR Metal Repair Compound 503-M=#89062#?id=799922 or HPR…

Applications

>Pump Casings >Pump Impellers >Valves >Pipes >Propellers >Rudders >Heat Exchanger End Plates >Water Boxes >Separator Housings >Kort Nozzles

Colours & Unit Size

Colours: >Dark Grey >Light Grey >Red >Blue Unit Size: >1KG >3KG >27KG

Coverage & Cure Time

Coverage: >Approx. 1.8M² per KG at 250µ Cure Time: >Light Loading: Approx. 3 Hours at 20°C >Full Immersion: Approx. 2 Days at 20°C

Pot Life & VOC

Pot Life: > Approx. 20-30 Minutes at 20°C VOC: >0g/L

HPR Ceramic Repair Compound 515-C

Properties

HPR Ceramic Repair Compound 515-C is a two-component solvent free epoxy metal repair compound. The product has been designed for use on a wide range of metallic surfaces subject to abrasion and impact. Please read the data sheet for more information.

Applications

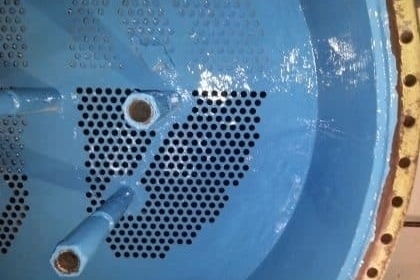

>Worn Impellers >Damaged Valves >Separator Housings >Damaged Pump Casings >Eroded Pipe Work >Propellers >Bow Thrusters >Rudders >Corroded Water Boxes >End Plated >Tube Sheets

Colours & Unit Size

Colours: >Dark Grey Unit Size: >1KG >3KG >30KG

Coverage & Cure Time

Coverage: >Approx. 0.4M² per KG at 1MM Cure Time: >Light Loading: Approx. 2 Hours at 20°C >Full Immersion: Approx. 3 Days at 20°C

Pot Life & VOC

Pot Life: > Approx. 30 Minutes at 20°C VOC: >0g/L

HPR Ceramic Repair Compound 517-HTC

Properties

HPR Ceramic Repair Compound 517-HTC is designed to upgrade the performance of conventional materials of construction and in particular, to protect equipment operating in contact with water and aqueous/hydrocarbon mixtures against erosion/corrosion at elevated temperatures. The coating once fully cured…

Applications

>Condensate Extraction Pumps >Return Tanks >Calorifiers >Distillation Unit >Evaporators >Heat Exchangers >Scrubber Units

Colours & Unit Size

Colours: >Dark Grey >Light Grey Unit Size: >1KG >3KG

Coverage & Cure Time

Coverage: >Approx. 0.9M² per KG at 500µ Cure Time: >Minimum Overcoat: Approx. 4 Hours at 20°C >Full Cure: Approx. 3 Days at 20°C

Pot Life & VOC

Pot Life: > Approx. 30 Minutes at 20°C VOC: >0g/L

HPR Ceramic Repair Compound 519-HDC

Properties

HPR Ceramic Repair Compound 519-HDC is a two-component solvent free epoxy metal repair compound designed for heavy duty abrasion resistant repair and lining applications. Please read the data sheet for more information.

Applications

>Chutes >Hoppers >Pipe Bends >Pump Casings >Mechanical Equipment

Colours & Unit Size

Colours: >Mid Grey >Blue >Red Unit Size: >5KG >25KG

Coverage & Cure Time

Coverage: >Approx. 0.2M² per KG at 3MM Cure Time: >Light Load: Approx. 8 Hours at 20°C >Immersion: Approx. 6 Days at 20°C

Pot Life & VOC

Pot Life: > Approx. 50-60 Minutes at 20°C VOC: >0g/L

HPR Ceramic Repair Compound 520-HTAC

Properties

HPR Ceramic Repair Compound 520-HTAC is designed to upgrade the performance of conventional materials of construction and in particular to protect equipment operating in contact with acids and highly aggressive chemicals at elevated temperatures. The coating once fully cured is…

Applications

>Oil & Gas Processing Equipment >Condensate Extraction Pumps >Return Tanks >Calorifiers >Distillation Units >Evaporators >Hat Exchangers >Scrubber Units

Colours & Unit Size

Colours: >Dark Grey >Light Grey Unit Size: >1KG >3KG

Coverage & Cure Time

Coverage: >Approx. 1.4M² per KG at 300µ Cure Time: >Light Loading: Approx. 6 Hours at 20°C >Immersion: Approx. 3 Hours at 20°C

Pot Life & VOC

Pot Life: > Approx. 20-30 Minutes at 20°C VOC: >0g/L

HPR Metal Repair Compound 501-MXF

Properties

HPR Metal Repair Compound 501-MXF is a fast curing two-component solvent free epoxy metal repair compound. The product has been designed for use on a wide range of metallic surfaces and once cured is readily machine able. Please read the data…

Applications

>Damaged Pump Shafts >Cracked Pump/Valve Casings >Damaged Flanges >Leaking Tank Seams >Cracked Engine Blocks >Underwater Surfaces >Underwater Hull >Underwater Structures

Colours & Unit Size

Colours: >Light Grey Unit Size: >200GM >500GM

Coverage & Cure Time

Coverage: >Approx. 2.2M² per KG at 1MM Cure Time: >Light Loading: Approx. 90 Minutes at 20°C >Immersion: Approx. 8 Hours at 20°c

Pot Life & VOC

Pot Life: > Approx. 5 Minutes at 20°C VOC: >0g/L

HPR Metal Repair Compound 503-M

Properties

HPR Metal Repair Compound 503-M is a two-component solvent free epoxy metal repair compound. The product has been designed for use on a wide range of metallic surfaces and once cured is readily machine able. Please read the data sheet for…

Applications

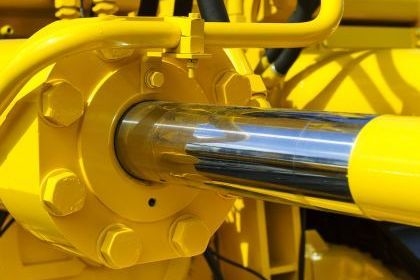

>Worn/Damaged Pump Shafts >Cracked Pump/Valve Casings >Scored Hydraulic Rams >Worn Bearing Housings >Damaged Flanges >Leaking Tank Seams >Worn Keyways >Cracked Engine Blocks

Colours & Unit Size

Colours: >Dark Grey Unit Size: >500GM >1KG >3KG >30KG

Coverage & Cure Time

Coverage: >Approx. 0.4M² per KG at 1MM Cure Time: >Light Loading: Approx. 2 Hours at 20°C >Immersion: Approx. 3 Days at 20°C

Pot Life & VOC

Pot Life: > Approx. 30 Minutes at 20°C VOC: >0g/L

HPR Metal Repair Compound 509-MXL

Properties

HPR Metal Repair Compound 509-MXL is a two-component solvent free epoxy metal repair compound. The product, has an extended working life and has been designed for use in hot climate or in situations where the complexity of an application requires…

Applications

>Worn/Damaged Pump Shafts >Cracked Pump/Valve Casings >Scored Hydraulic Rams >Worn Bearing Housings >Damaged Flanges >Leaking Tank Seams >Worn Keyways >Cracked Engine Blocks

Colours & Unit Size

Colours: >Dark Grey Unit Size: >4KG >50KG

Coverage & Cure Time

Coverage: >Approx. 4M² per KG Cure Time: >Light Loading: Approx. 12 Hours at 20°C >Immersion: Approx. 7 Days at 20°C

Pot Life & VOC

Pot Life: > Approx. 1 Hour at 20°C VOC: >0g/L

HPR Metal Repair Compound 516-M

Properties

HPR Metal Repair Compound 516-M is a two-component fast curing solvent free epoxy rep air fluid. The product has been designed for use on a wide range of metallic surfaces and is tolerant of less than ideal surface preparation and…

Applications

>Emergency Repairs (Worn Surfaces) >Anti-Slip (Metallic Surfaces) >Resurfacing/Sealing Leaking Transformers

Colours & Unit Size

Colours: >Light Grey Unit Size: >800GM

Coverage & Cure Time

Coverage: >Approx. 0.55M² per KG at 1MM Cure Time: >Touch Dry: Approx. 25 Minutes at 20°C >Full Cure: Approx. 45 Minutes at 20°C

Pot Life & VOC

Pot Life: > Approx. 5 Minutes at 20°C VOC: >0g/L

HPR Metal Repair Compound 518-WM

Properties

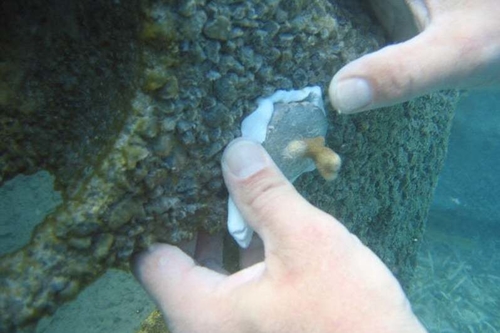

HPR Metal Repair Compound 518-WM is a two-component repair material in stick form which cures underwater after mixing. It is a metal repair adhesive which develops high mechanical strength in a short period of time. Its designed for emergency repairs…

Applications

>Leaking Pipe Work >Tank Seams >Flanges

Colours & Unit Size

Colours: >Cream Unit Size: >0.125KG

Coverage & Cure Time

Coverage: >N/A Cure Time: >Light Loading: Approx. 45 Minutes at 20°C >Immersion: Approx. 90 Minutes at 20°C

Pot Life & VOC

Pot Life: > Approx. 15 Minutes at 20°C VOC: >0g/L

HPR Metal Repair Compound 527-M

Properties

HPR-527-M Metal Repair Compound is a two-component repair material in stick form which cures rapidly at room temperature after mixing. It is a metal repair adhesive which develops high mechanical strength in a short period of time. Please read the data…

Applications

>Worn/Damaged Pump Shafts >Cracked Pump/Valve Casings >Scored Hydraulic Rams >Worn Bearing Housings >Damaged Flanges >Leaking Tank Seams >Worn Keyways >Cracked Engine Blocks

Colours & Unit Size

Colours: >Grey Unit Size: >0.125KG

Coverage & Cure Time

Coverage: >N/A Cure Time: >Light Loading: Approx. 30 Minutes at 20°C >Immersion: Approx. 1 Hour at 20°C

Pot Life & VOC

Pot Life: > Approx. 5 Minutes at 20°C VOC: >0g/L

HPR Pipe Repair Tape 504-M

Properties

HPR Pipe Repair Tape 504-M is a high-performance rapid curing moisture activated repair bandage, specifically developed for the repair of leaking pipes, which is activated by immersion in water. It is ideal for pipe repairs to low pressure systems. As…

Applications

>Pipework (plastic or metal up to 100MM dia)

Colours & Unit Size

Colours: >White Unit Size: >50MM X 1.8M >50MM X 3.6M >75MM X 3.6M >100MM X 3.6M

Coverage & Cure Time

Coverage: >N/A Cure Time: >Touch Dry: Approx. 5 Minutes >Full Cure: Approx. 30 Minutes

Pot Life & VOC

Pot Life: >Approx. 2-3 minutes at 20°C VOC: >0 g/L
